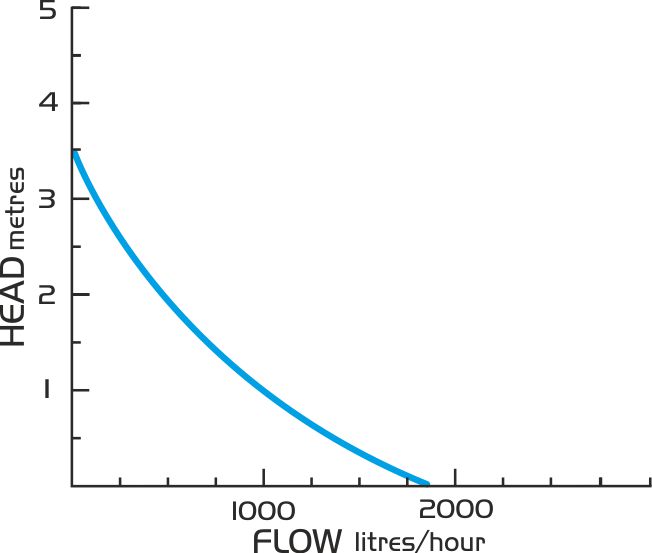

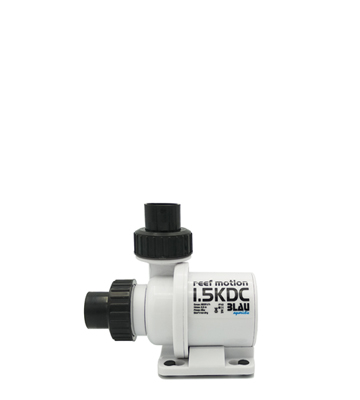

Max. Flow:1800 l/h
Height: 3,5 m (11,5 ft)
Power:18w
Power supply: 24v 1A
Outlet pipe:16/20 mm
Outlet thread: 1"
Inlet pipe: 20 mm
Inlet thread: 1"
Dimensions: 93x62x107 mm

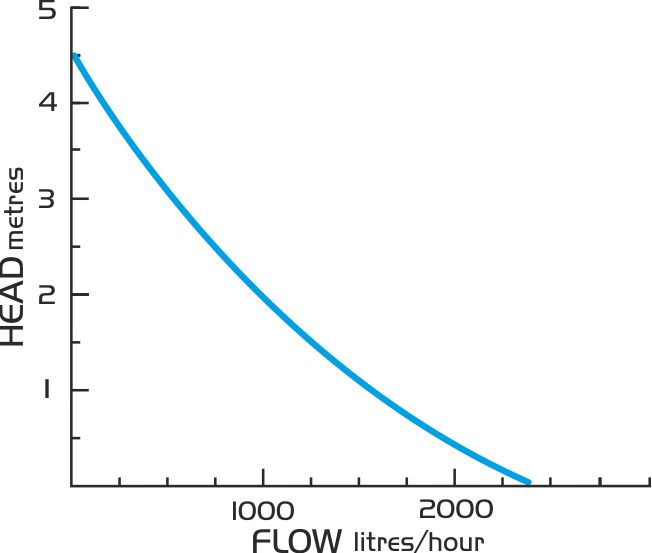

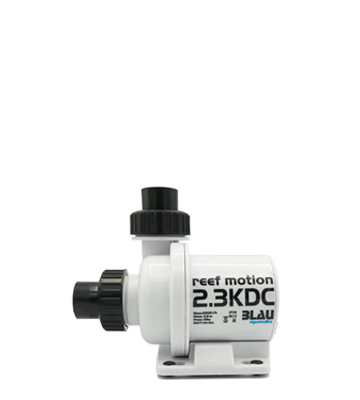

Max. Flow: 2300 l/h
Height: 4,5 m (14,8 ft)
Power:28w
Power supply: 24v 1,5A
Outlet pipe: 20 mm
Outlet thread: 1"
Inlet pipe: 20 mm
Inlet thread: 1"
Dimensions: 121x73x118 mm

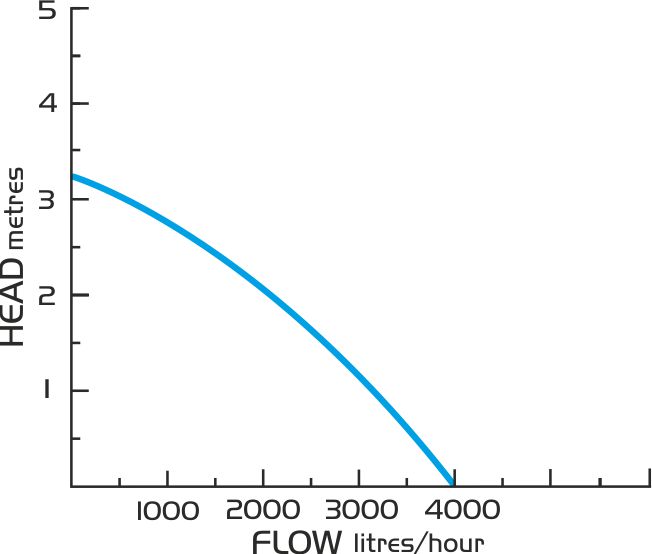

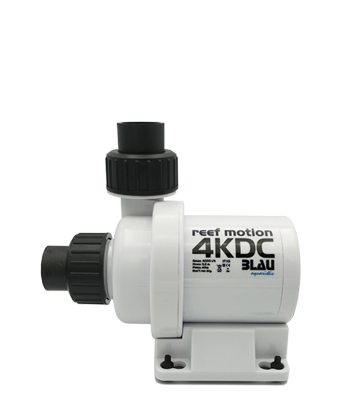

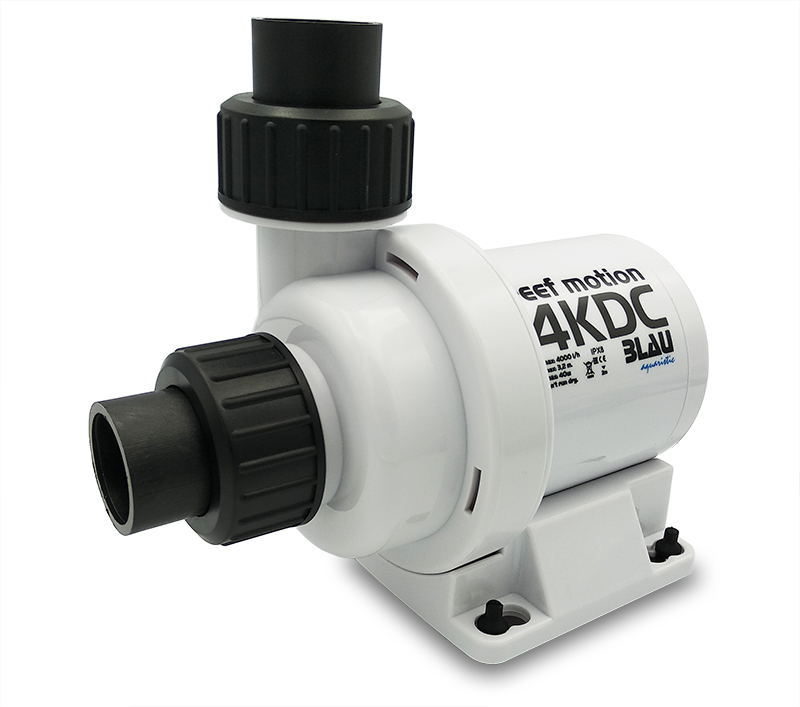

Max. Flow: 4000 l/h
Height: 3,2 m (10,5 ft)
Power: 35w
Power supply: 24v 3A
Oulet pipe: 25 mm
Outlet thread: 1 1/4"
Inlet pipe: 25 mm
Inlet thread: 1 1/4"
Dimensions: 164x95x155 mm

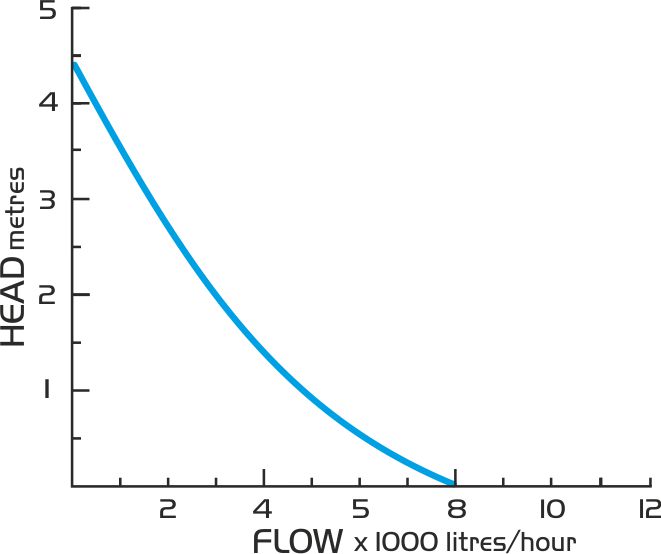

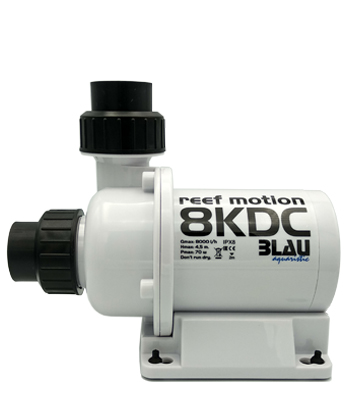

Max. Flow: 8000 l/h
Height: 4,3 m (14 ft)
Power: 70w
Power supply: 24v 5A
Outlet pipe: 32mm
Outlet thread: 1 1/2"
Inlet pipe: 32 mm
Inlet thread: 1 1/2"
Dimensions: 205x108x171 mm

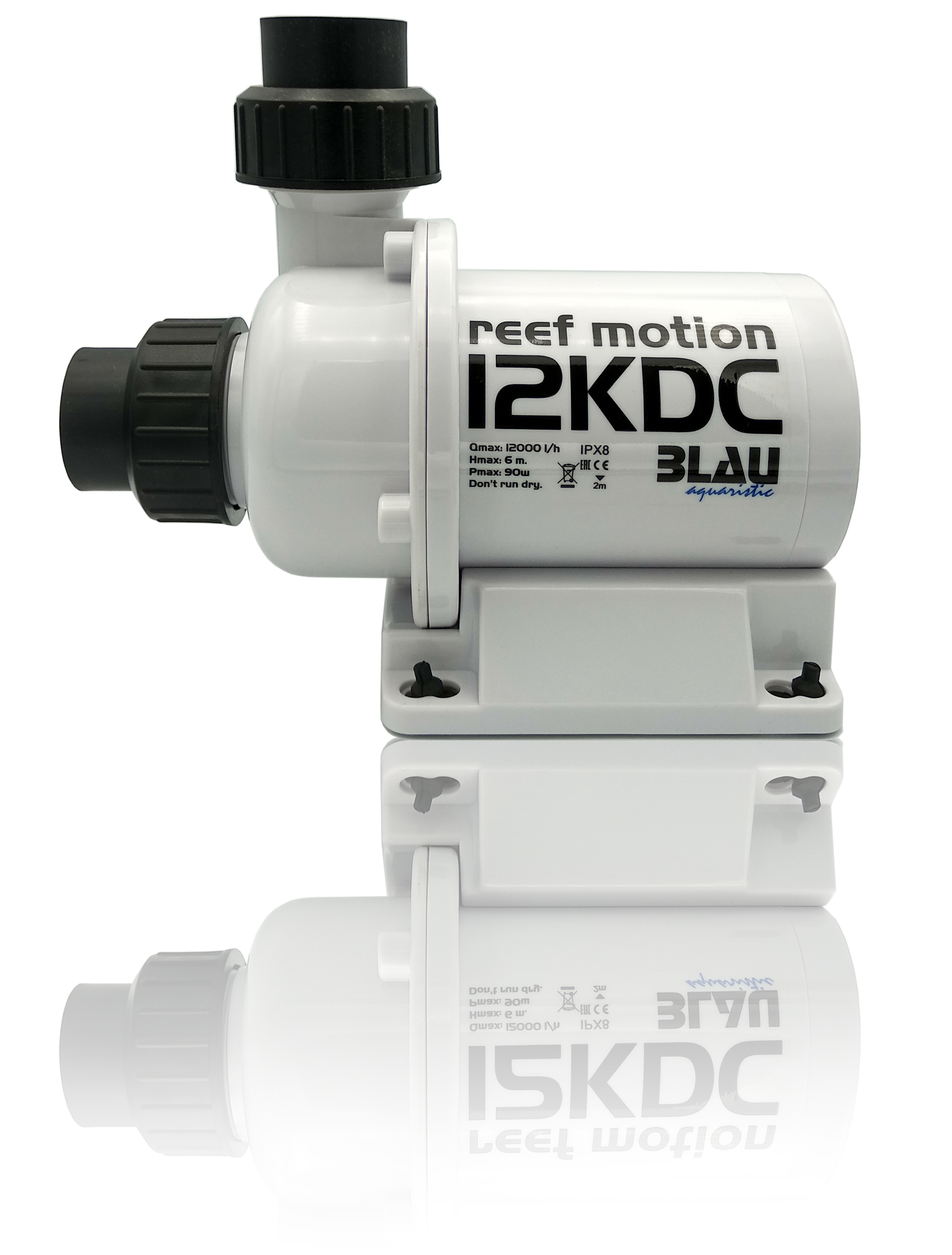

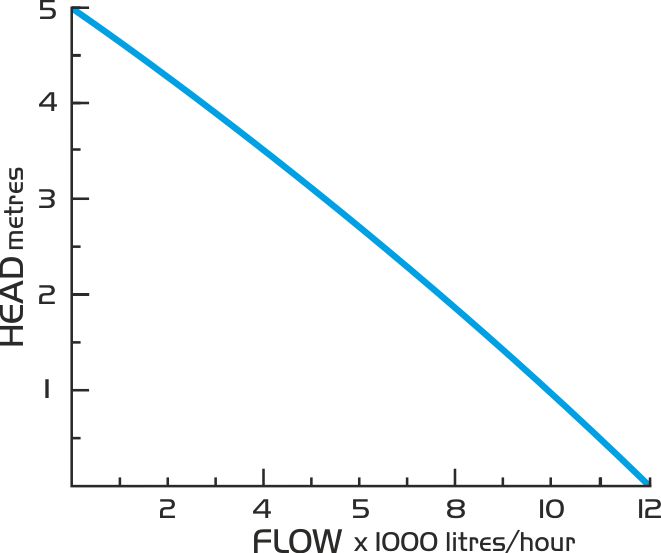

Max. Flow: 12000 l/h
M.Height: 5 m (16 ft)
Power: 95w
Power supply: 24v 6A
Outlet pipe: 32 mm
Outlet thread: 1 1/2"
Inlet pipe: 32 mm
Inlet thread: 1 1/2"
Dimensions: 205x108x171 mm

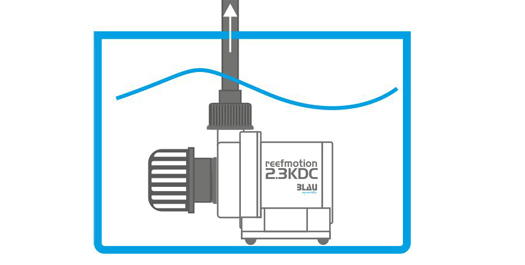

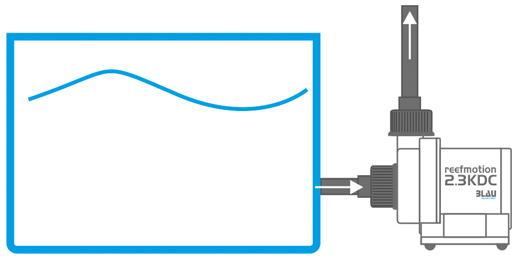

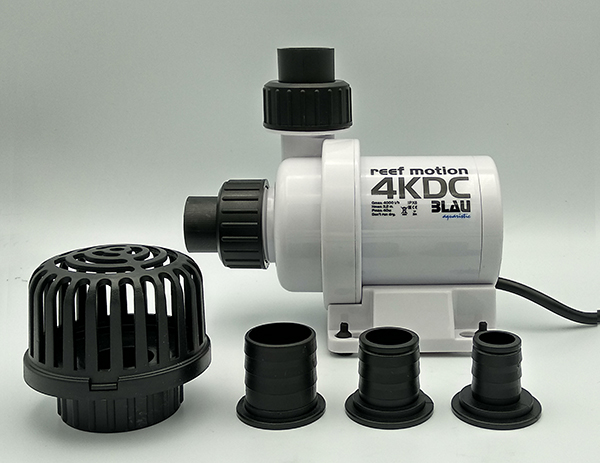

Reef Motion DC pumps come with all the necessary fittings to install the pump in your system, fixed PVC pipes or hose connectors. Inlet and outlet have standard thread.

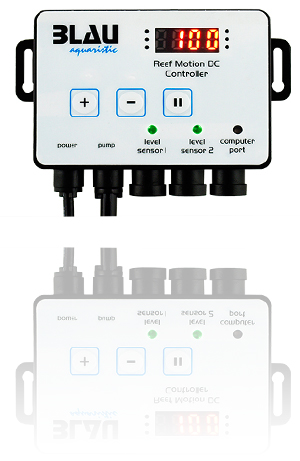

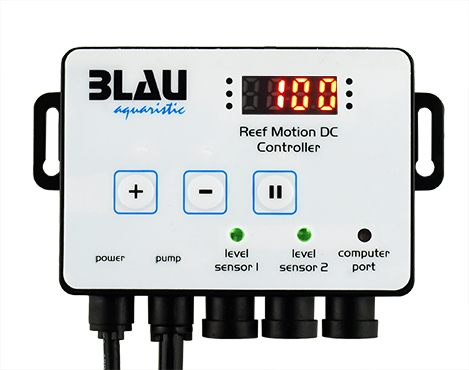

Compact multifunctional controller
It allows you to have an accurate reading of the power of the pump and the internal clock time. It informs you of any problem in the pump with alarms message, and it let you program the pump.
The internal clock allows you to program up to 3 feeding times ( 5 minutes at 30% power).
Also very functional in protein skimmers as it allows programming a stop in feeding times or addition of elements

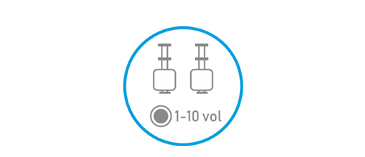

You can connect up to 2 level sensors to prevent water overflow or dry operation in your aquarium or in your protein skimmer.
You can control the pump with an aquarist computer by computer port with a 1/10 vol signal.
If there is a problem, an alarm message will appear on the display showing the type of problem.
After a pause due to the detection of an error, the pump will restart 5 times to try to solve the problem, if it can not get, it will stop.
This protocol prevents the pump motor burn, but if the problem has been solved in these 5 attempts the pump will work again avoiding the aquarium to run out of flow.
If the pump detects that it is working dry, it will follow the self-protection protocol.
The pump also detects the presence of a foreign body in the pump that could damage the rotor or if there is a problem in aligning the rotor shaft or the bearings.
If the pump detects that there is an abnormal consumption and overheating, the self-protection protocol will be activated.

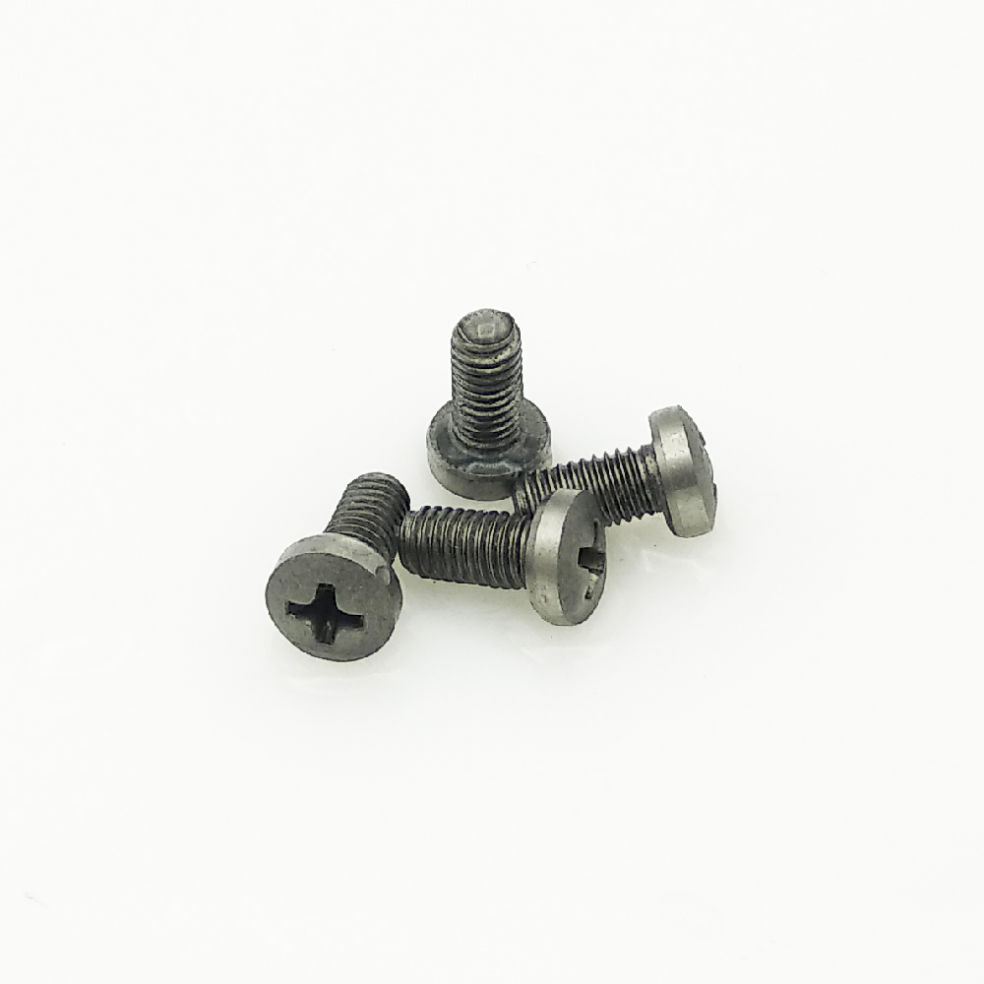

Sea water it's very corrosive by itself; but in marine aquarium, additives are used that are even more aggressive against metallic materials, that is why at Blau Aquaristic we have chosen to use Titanium fasteners in the Reef Motion 8KDC and 12 KDC models, in concordance with the high quality of the rest of the materials used in the Reef Motion DC seriespumps.

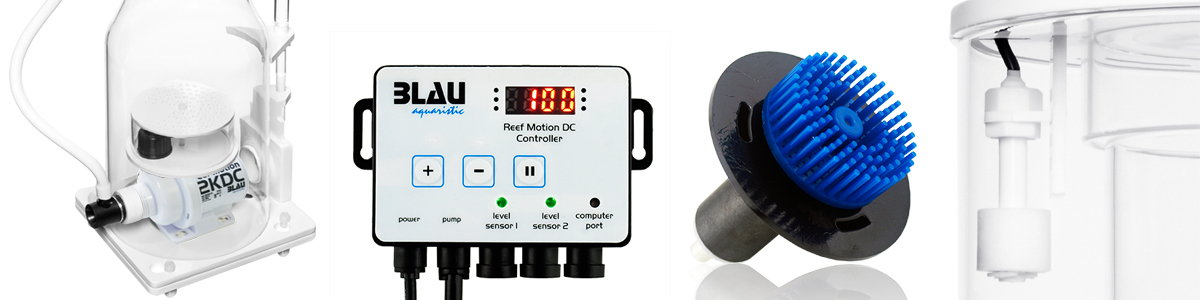

Powerful for injecting a lot of air and at the same time to avoid noise produced by vibrations
The possibility of programming the pump to make up to three feeding times allows to coordinate the decrease of the protein skimmer performance during periods of feeding or adding elements, avoiding the loss of newly added elements as well as the overflow.
The possibility of regulating the power of the pump allows a perfect adjustment to the skimming needs of the skimmer.
By connecting a level sensor located in the skimmer cup you can avoid its overflow.

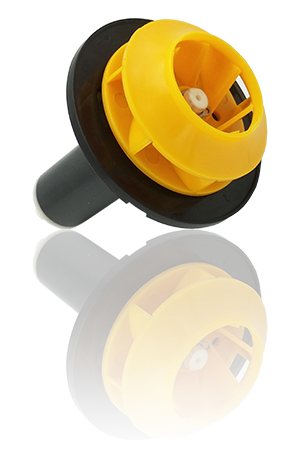

7795015i Impeller RM 1.5 KDC
7790202i Impeller RM 2.3 KDC
7795004i impeller RM 4 KDC
7795008i Impeller RM 8 KDC
7795012i Impeller RM 12 KDC

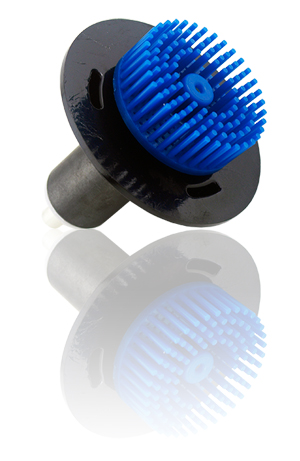

7795015PW Pinwheel RM 1.5 KDC
7790202PW Pinwheel RM 2.3 KDC
7795004PW Pinwheel RM 4 KDC
7795008PW Pinwheel RM 8 KDC
7795012PW Pinwheel RM 12 KDC
7795015C Controller RM 1.5 KDC
7790202C Controllerl RM 2.3 KDC
7795004C Controller RM 4 KDC
7795008C Controller RM 8 KDC
7795012C Controller RM 12 KDC
Each pump has its specific controller and can not be exchanged

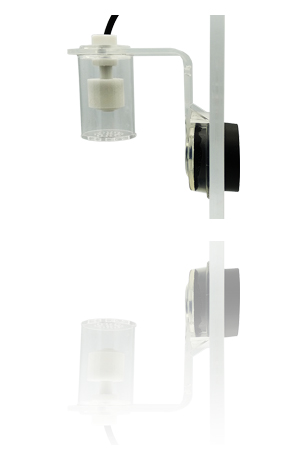

7799008 Maximum Level Sensor
The sensor stops the pump when the float is up.
7799009 Minimum Level Sensor
The sensor stops the pump when the float is down.
